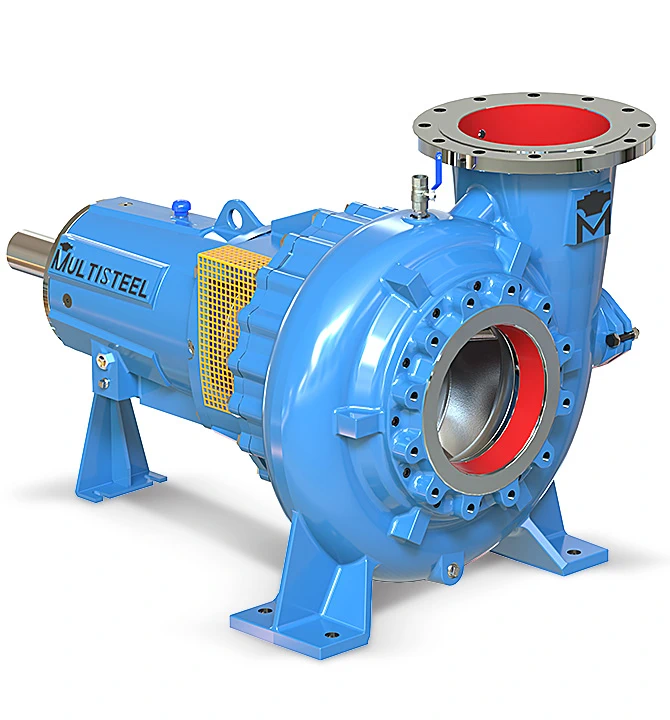

RTK-RAO Line

Horizontal single-stage pump, designed for a wide range of applications, offering high versatility. It can operate with impellers from the RTK and RAO lines in the same casing.

Possible mountings:

• Horizontal bearing-mounted
• Vertical dry-pit and wet-pit in cantilever version

Additional features:

• Rear vanes to compensate axial thrust
• Reduced solids buildup at the rear of the impeller

RTK Line: tubular impellers developed for pumping dirty and dense fluids without the formation of long fibers.

Examples: paper stock up to 4%, honey, molasses, raw sewage, sludge, among others.

RAO Line: open impellers indicated for fluids containing suspended solids, particulates, abrasive fluids and fibers.

Examples: raw sewage, cane juice with bagasse, paper stock up to 7%, among others.

These pumps are suitable for:

• Water and sand mixtures
• Screened and/or raw sewage
• Wastewater and drainage
• Viscous or dense liquids such as mud, slurries and cane juice with bagasse
• Industrial fluids with suspended solids

• Steel industry
• Petrochemical
• Sugar and alcohol
• Sanitation
• Civil construction
• Pulp and paper
• Chemical industry
• Among others

• Nominal diameters (DN): 50 mm to 350 mm
• Flow rates: up to 2,500 m³/h
• Head: up to 100 mca
• Speed: up to 3,500 rpm

The Back Pull Out system allows the pump to be dismantled without removing the casing from the piping, facilitating maintenance activities and reducing equipment downtime.

Main alloys used:

• A48 CL35
• A351 CF8
• A351 CF8M
• A743 CA6NM
• A743 CA40
• A532 CLIII TPA (Ni-Hard)
